Fir Tree Cable Ties

Product introduction

◆Material: Polyamide 6.6 or heat stabilised(PA66HS),94V-2 certificated byUL. Acid & erosion control,insulate well and not easy to aging、tensile strong.

◆Application temperature: -40℃-85℃(PA66) -40℃-105℃(PA66HS)

◆Installation temperature: -10℃-85℃(PA66) -10℃-105℃(PA66HS)

◆Features: The fixed head is in the shape of a fir tree, which can be usedfor various panel thicknesses to minimize the entry of dust, dirt, andwater.

Technical parameter

Item NO.	L		W （mm）	Max.Bundle DIA.（mm）	Tensile Strength		（φ） Hole Dia.	Panel Thickness
Item NO.	Inch	mm	W （mm）	Max.Bundle DIA.（mm）	LBS	KGS	mm	mm

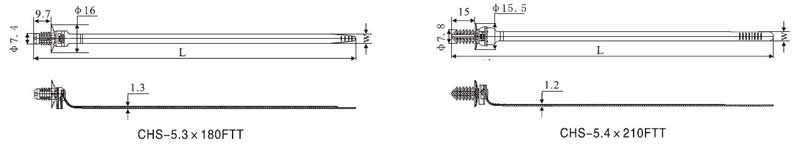

5.3×180FTT	7.1/10''	180	5.3	30	40	18	6.5-7	0.6-4.5
5.4×210FTT	8.1/4''	210	5.4	48	40	18	6.5-7.2	1-8
