Elliptical Head Cable Ties

Elliptical Head Cable Ties
Online orders

Product introduction

◆Material: Polyamide 6.6 or heat stabilised(PA66HS),94V-2 certificated byUL. Acid & erosion control,insulate well and not easy to aging、tensile strong.

◆Application temperature: -40℃-85℃(PA66)-40℃-105℃(PA66HS)

◆Installation temperature:-10℃-85℃(PA66)-10℃-105℃(PA66HS)

◆Features: Fixed head in elliptical shape, which can be used for variouspanel thicknesses to minimize the entry of dust, dirt, and water.

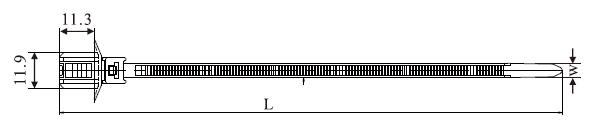

Technical parameter

Item NO.	L		W （mm）	Max.Bundle DIA.（mm）	Tensile Strength		（φ） Hole Dia.	Panel Thickness
Item NO.	Inch	mm	W （mm）	Max.Bundle DIA.（mm）	LBS	KGS	mm	mm
4.7×165FTT	6.1/2''	165	35	35	40.5	180	6.5×13	0.7-5.0
